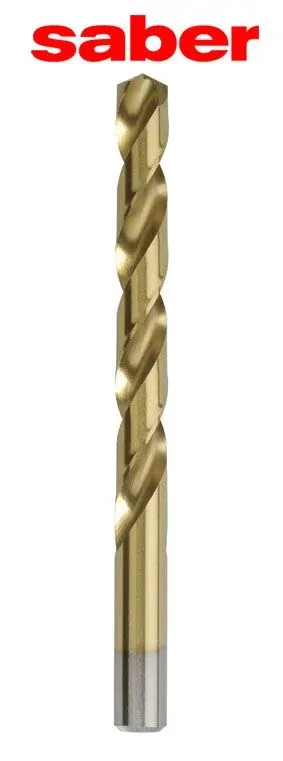

Saber 5/32" TiN Coated M2-HSS Jobber Drill 10 Pack
$29.70
RRP $44.30
SAVE $14.60 (33%)
- Saber 5/32" TiN Coated M2-HSS Twist Drill
- ANSI B94-11
- 135° Split Point (crankshaft point).
- Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
- The 135° point should be used to cut harder steel materials especially in deep hole applications.
- In these situations it will produce thicker chips minimising work hardening of the cavity.
- Faster penetration reduces abrasion and friction along the cutting edges.
- Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
- The coating higher speed and feed rates can be achieved and tool life is greatly increased.
- The TiN coating is achieved by Physical Vapour Deposition (PVD).
- As with all surface coated tools, performance will deteriorate after resharpening.
(8011-5-32)
| Part Number: | 8011-5/32 |
| Brand: | Saber |
| Pack Qty: | 10 |
| Feed per revolution mm: | 0.09 |
| Spindle Speed Aluminium/Brass RPM: | 4894 |
| Spindle Speed Cast Iron RPM: | 1925 |
| Spindle Speed Free Cutting Steel RPM: | 3450 |
| Spindle Speed Malleable Iron RPM: | 2166 |
| Spindle Speed Med. Carbon Steel RPM: | 2407 |
| Spindle Speed Stainless Steel RPM: | 963 |
| Spindle Speed Tool Steel RPM: | 1444 |
| Spindle Speed Wood/Plastic RPM: | 7301 |
| Diameter (inch): | 5/32 |
| Diameter (mm): | 3.97 |
| Flute Length (mm): | 51 |
| Overall Length (mm): | 79 |
| SKU | 8011-5-32 |
| Brand | Saber |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.040m |
| Shipping Height | 0.040m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000160000m3 |
