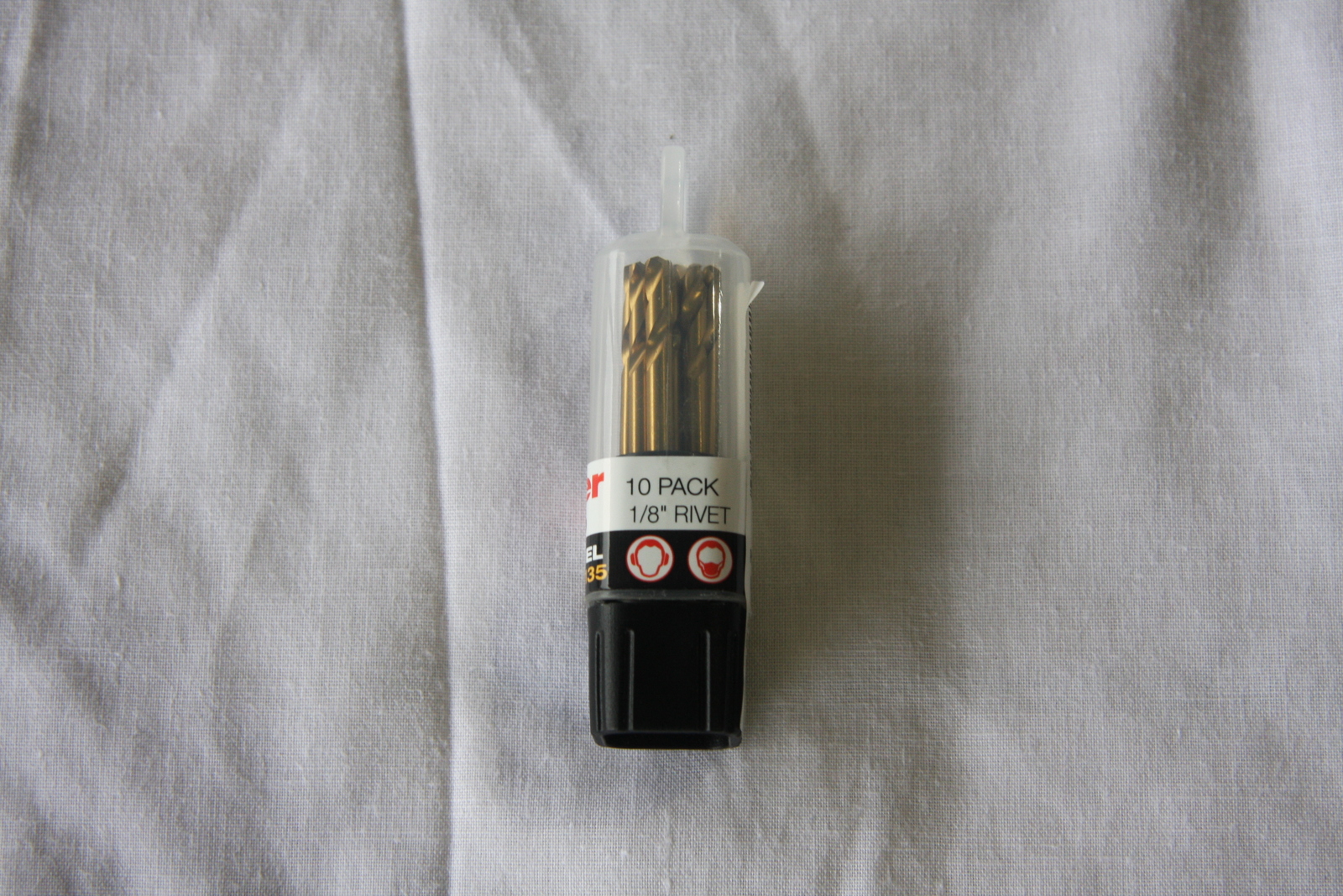

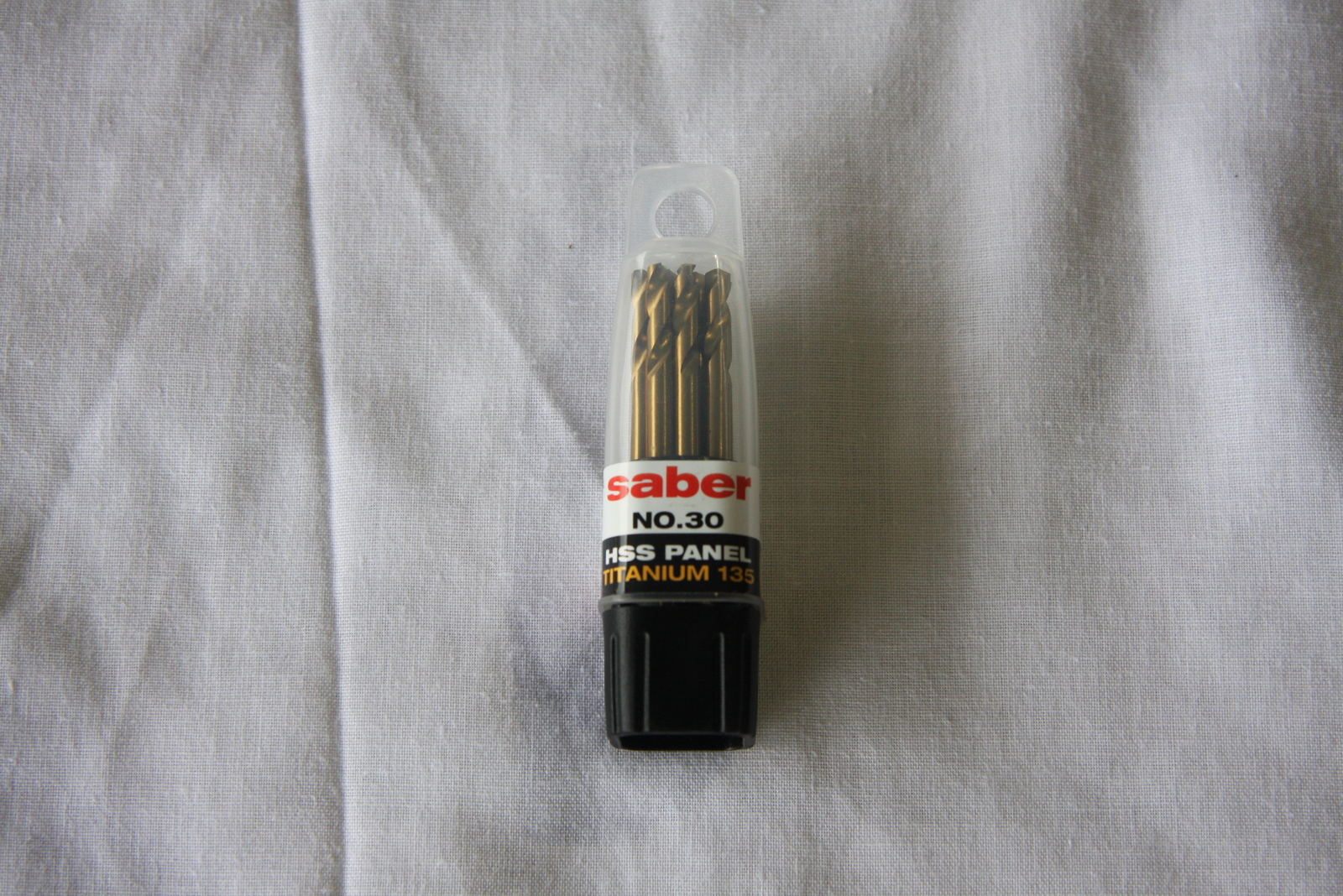

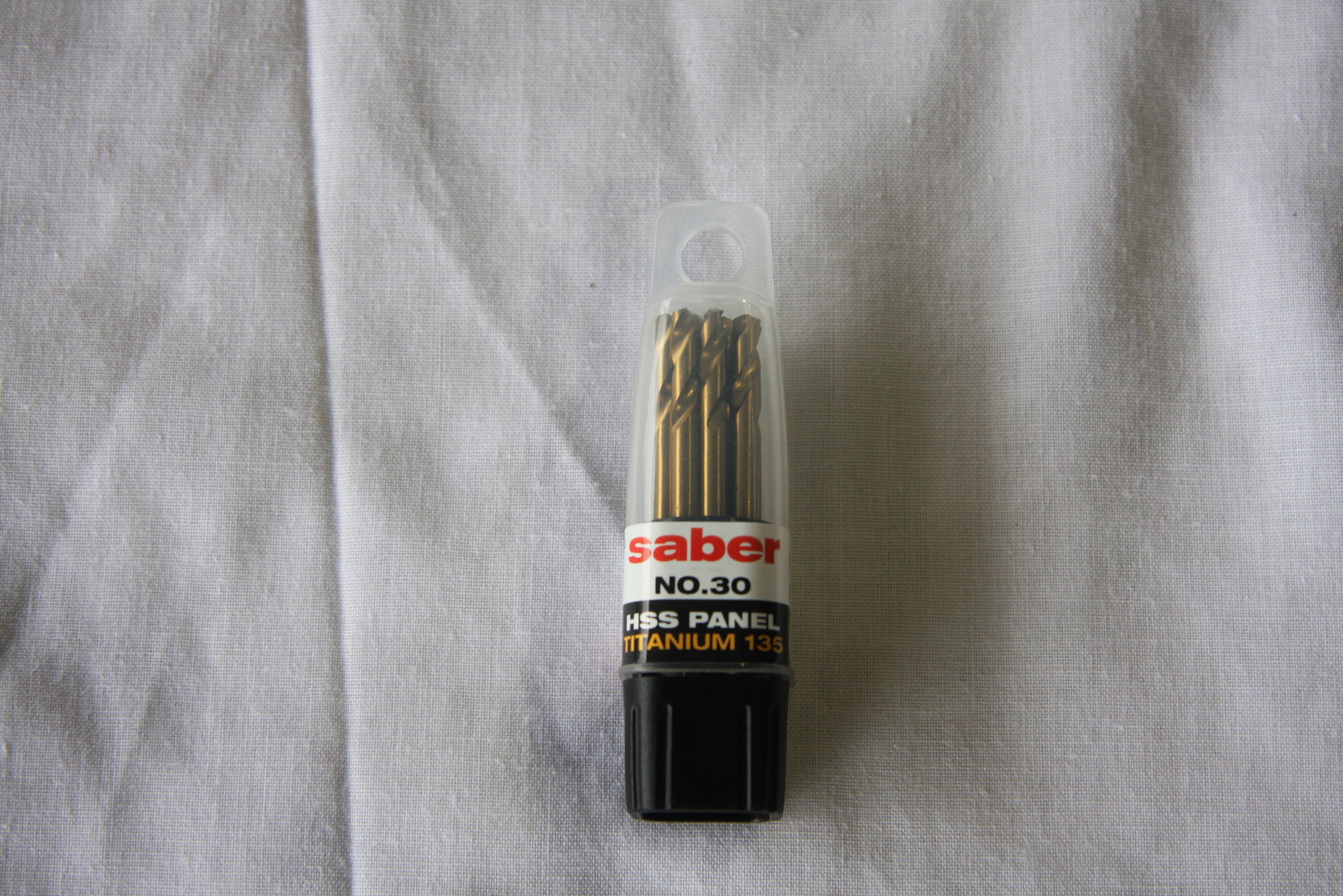

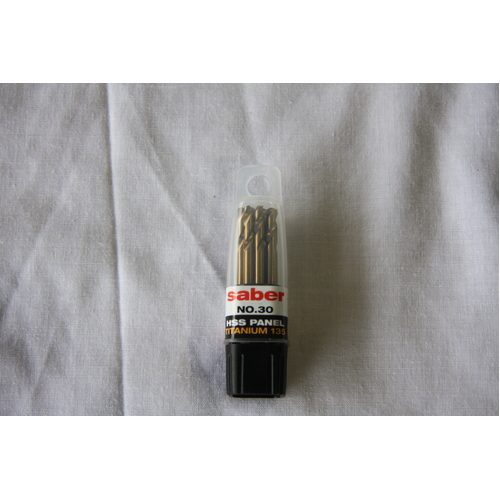

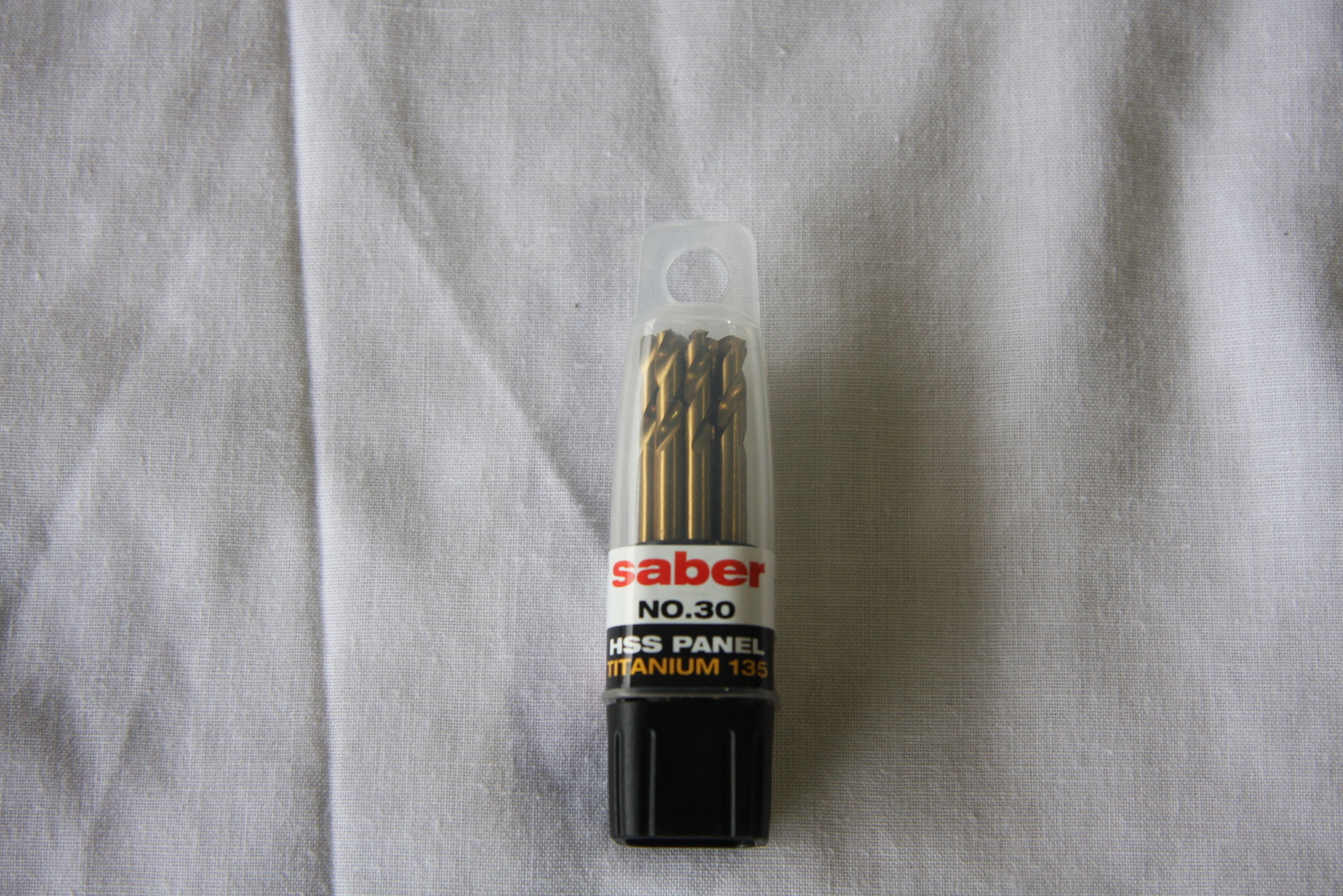

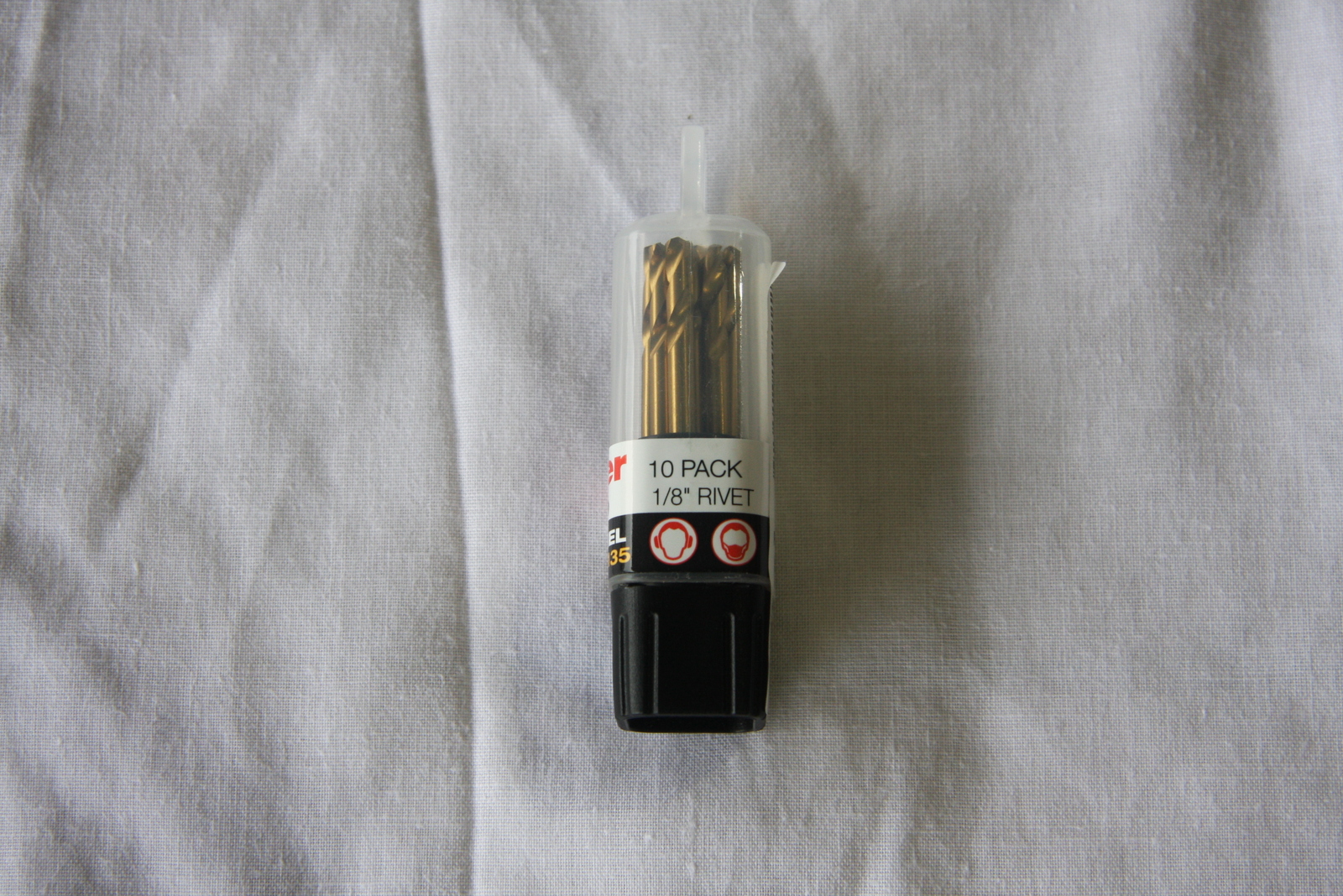

Saber 30 Gauge TiN Coated HSS Single Ended Panel Drill Pack 10


In Stock

Calculate Shipping

Free pick-up from store - $0.00
Click and collect from our Deception Bay, Brisbane store

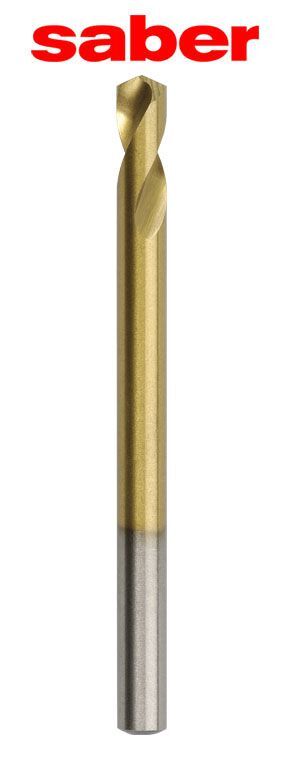

  • Saber 30 Gauge TiN Coated HSS Singled Ended Panel Drill
  • Saber 30 Gauge M2-HSS TiN Coated Single Ended Panel Drill
  • Drill diameter 3.26mm to suit 1/8" rivet.
  • 135º Split Point (crankshaft point)
  • Split point is self centering reducing the need for end thrust.
  • The 135º point provides superior performance when drilling harder steel materials.
  • In most situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).


Part Number: 8042-30
Brand: Saber
Pack Qty: 10
Diameter (gauge): 30
Diameter (mm): 3.26
Flute Length (mm): 14
Overall Length (mm): 51
Rivet Diameter: 1/8"
SKU 8042-30
Brand Saber
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000750000m3
