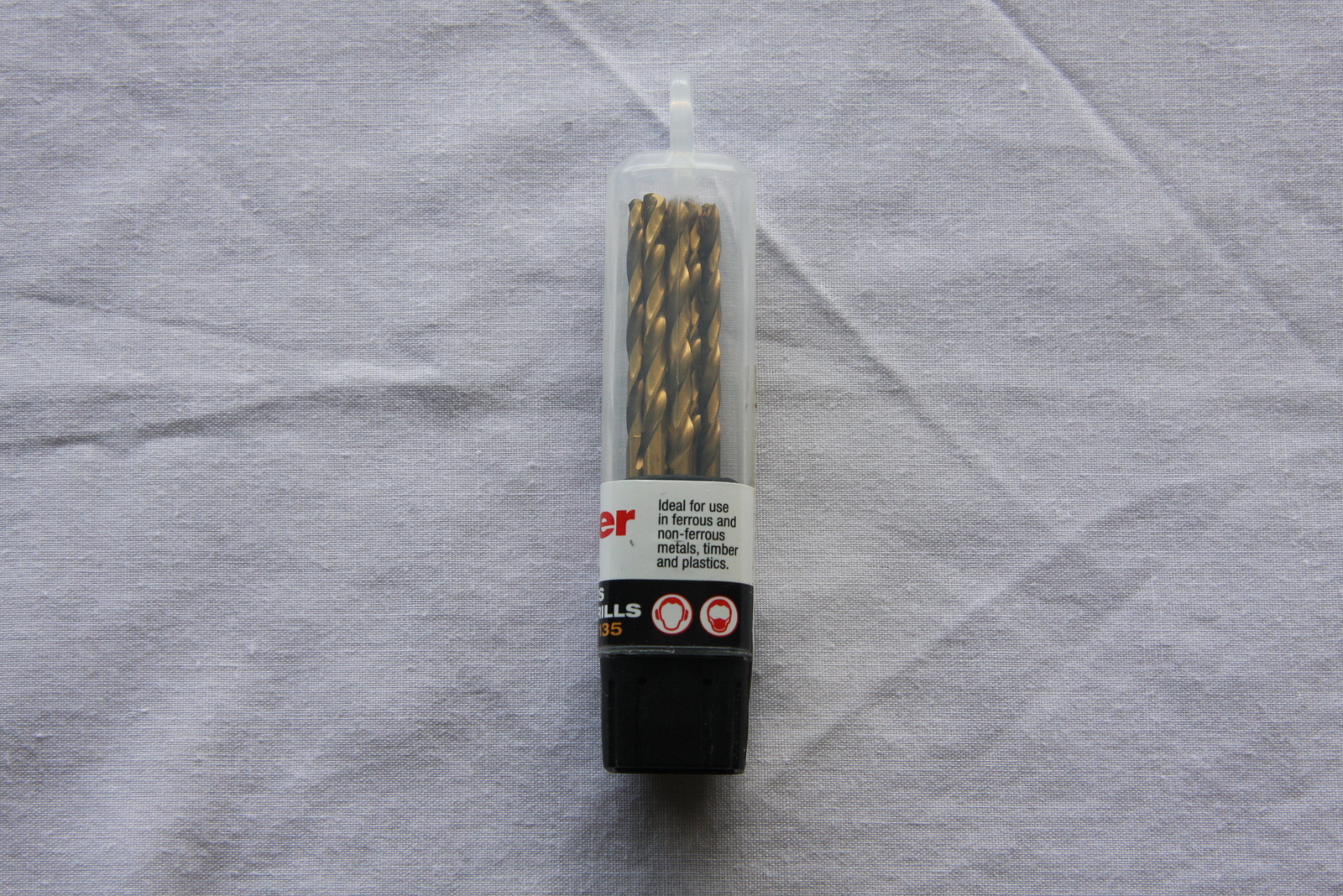

Saber 3.50mm TiN Coated M2-HSS Jobber Drill 10 Pack

$23.65

Sold Out


Calculate Shipping



Free pick-up from store - $0.00
Click and collect from our Deception Bay, Brisbane store

  • Saber 3.50mm TiN Coated M2-HSS Twist Drill
  • DIN338
  • 135º Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135º point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

(8010-3.50)

Part Number: 8010-3.50
Brand: Saber
Pack Qty: 10
Feed per revolution mm: 0.09
Spindle Speed Aluminium/Brass RPM: 5551
Spindle Speed Cast Iron RPM: 2184
Spindle Speed Free Cutting Steel RPM: 3913
Spindle Speed Malleable Iron RPM: 2457
Spindle Speed Med. Carbon Steel RPM: 2730
Spindle Speed Stainless Steel RPM: 1092
Spindle Speed Tool Steel RPM: 1638
Spindle Speed Wood/Plastic RPM: 8281
Diameter (mm): 3.5
Flute Length (mm): 39
Overall Length (mm): 70
SKU 8010-3.50
Brand Saber
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.030m
Shipping Length 0.150m
Shipping Cubic 0.000675000m3
