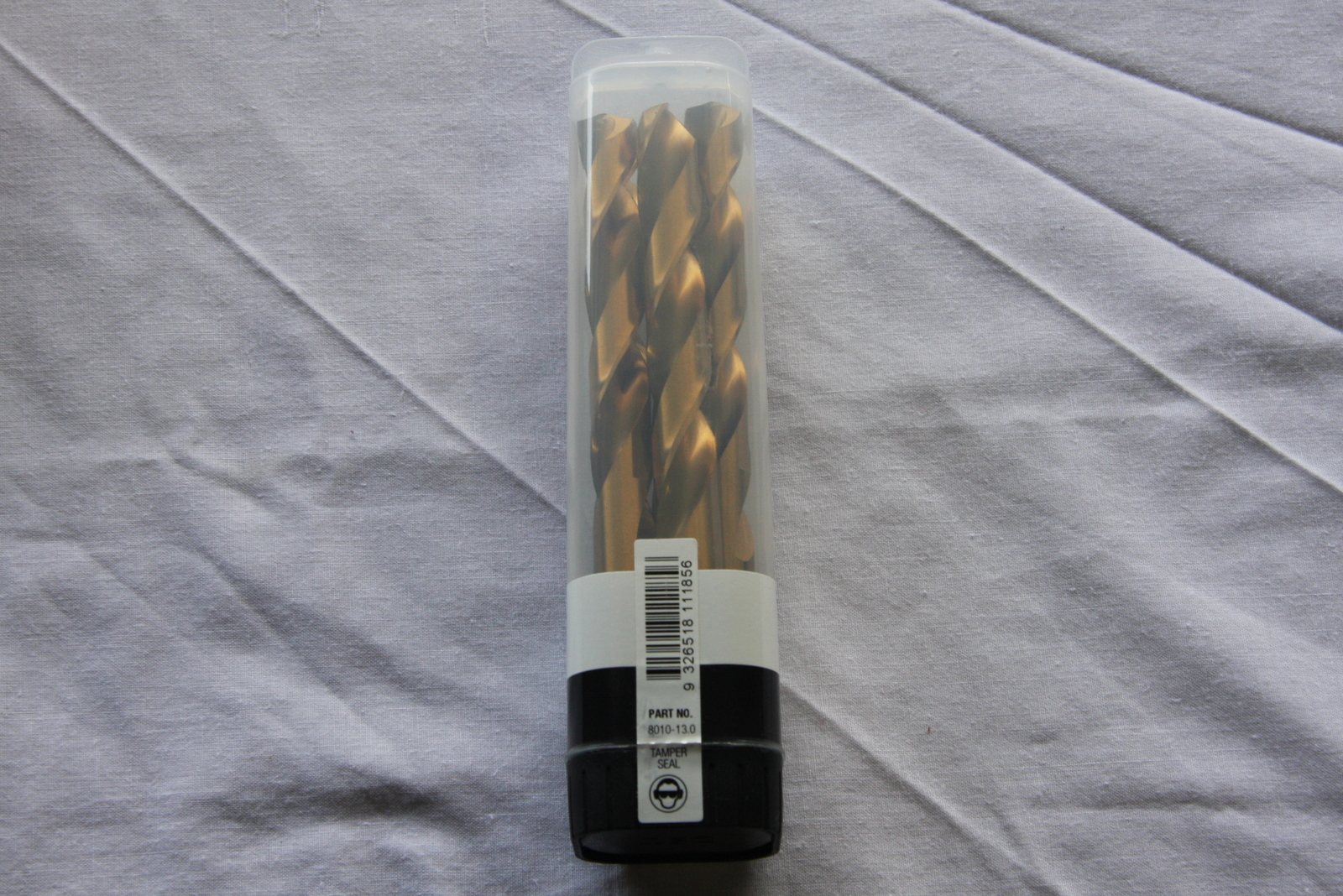

Saber 13.00mm TiN Coated M2-HSS Jobber Drill 5 Pack

WAS $99.00
NOW $90.00
Sale Ends in
00:00 am, 30 June 2024

Sold Out


Calculate Shipping



Free pick-up from store - $0.00
Click and collect from our Deception Bay, Brisbane store

  • Saber 13.00mm TiN Coated M2-HSS Twist Drill
  • DIN338
  • 135º Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135º point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

(8010-13.00)

Part Number: 8010-13.00
Brand: Saber
Pack Qty: 5
Feed per revolution mm: 0.25
Spindle Speed Aluminium/Brass RPM: 1495
Spindle Speed Cast Iron RPM: 588
Spindle Speed Free Cutting Steel RPM: 1054
Spindle Speed Malleable Iron RPM: 662
Spindle Speed Med. Carbon Steel RPM: 735
Spindle Speed Stainless Steel RPM: 294
Spindle Speed Tool Steel RPM: 441
Spindle Speed Wood/Plastic RPM: 2230
Diameter (mm): 13
Flute Length (mm): 101
Overall Length (mm): 151
SKU 8010-13.00
Brand Saber
Shipping Weight 0.5000kg
Shipping Width 0.280m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.001008000m3
